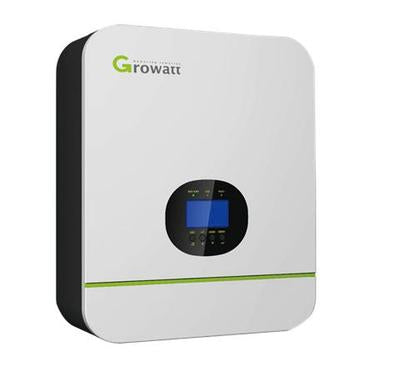

Growatt SPF5000TL Solar Inverter

  • Sale
  • Regular price R 12,990.00

Growatt SPF5000TL Solar Inverter

**Price based on collection from Edenvale Warehouse


Growatt SPF5000TL Solar Inverter

The Growatt SPF 3000-5000TL HVM series, ideal for Off-Grid Solar, or Grid Connected applications with full system monitoring.

Integrated MPPT charge controller
Configurable grid or solar input priority
Optional WIFI/ GPRS remote monitoring
Parallel for scalability
AC input available

Inverter Output:
Rated Power: 5000VA/ 5000W
Parallel Capability: Yes, 6 units
AC Voltage Regulation (Battery Mode): 230VAC ± 5% @ 50/60Hz
Surge Power: 10000VA
Efficiency (Peak): 93%
Waveform: Pure sine wave
Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances)

Solar Charger:
Maximum PV Array Power: 4500W
MPPT Range @ Operating Voltage: 60VDC ~115VDC
Maximum PV Array Open Circuit Voltage: 145VDC
Maximum Solar Charge Current: 80A
Maximum Efficiency: 97%
Standby Power Consumption: 2 W

AC Charger:
Charge Current: 60A
AC Input Voltage: 230 VAC
Selectable Voltage Range: 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range: 50Hz/60Hz (Auto sensing)

Dimension (D/W/H) in mm: 130/350/455
Net Weight (kgs): 14.5

Detailed Product Information
